9 x 2 4K Presentation Matrix Switch VP1920

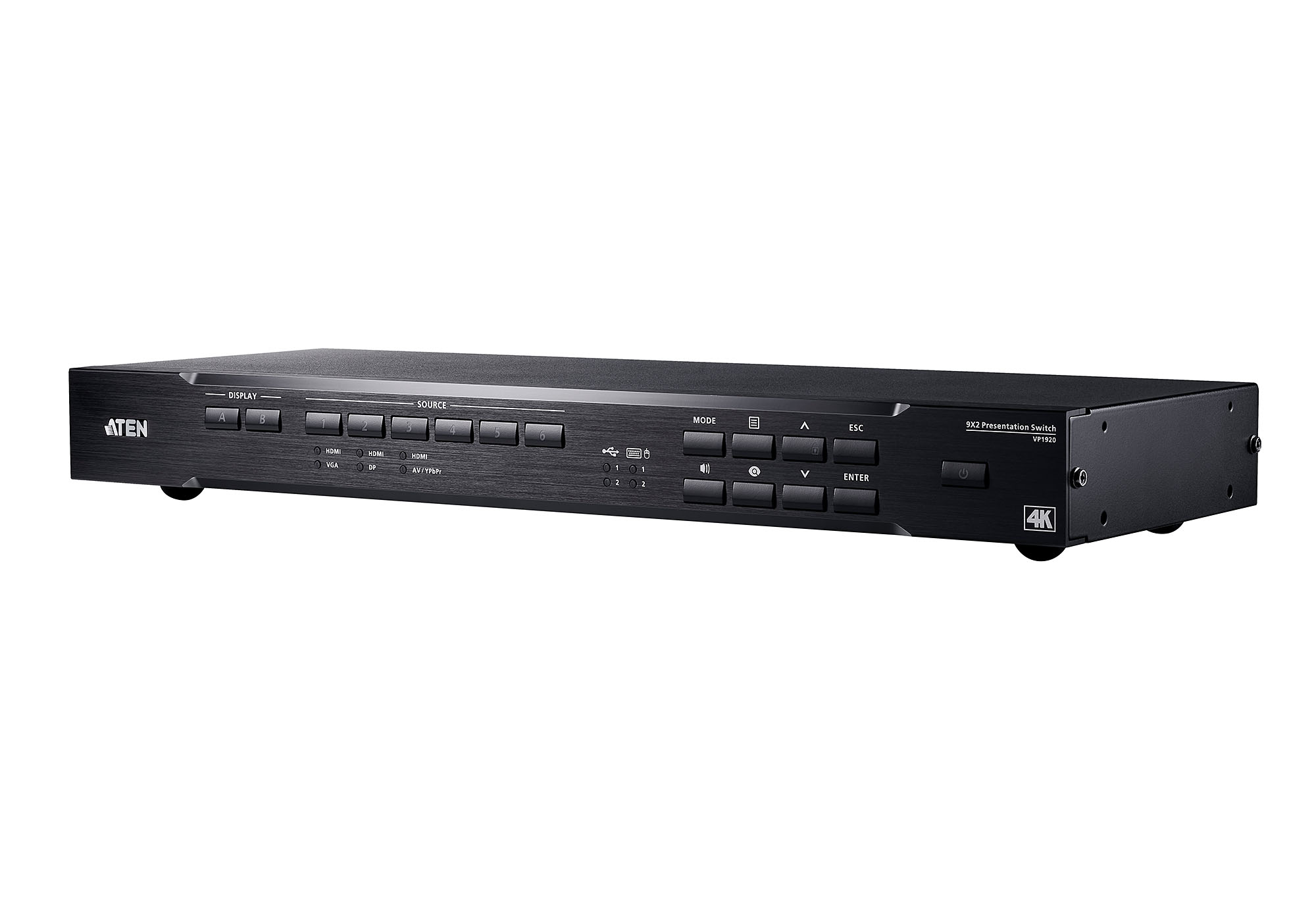

9 x 2 4K Presentation Matrix Switch  VP1920

9 x 2 4K Presentation Matrix Switch VP1920

VP1920 From: Aten Professional Audio/Video

  • Multi-format AV Switching with Simplicity
    • Supports multi-format 9 Inputs and 2 HDMI outputs:
      •  3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/AV/YPbPr)
      •  3 HDMI inputs
      •  2 HDMI outputs
    • VGA port supports universal analog input formats (RGBHV/RGBs/YCbCr/YPbPr)
    • Embed/De-embed Audio–HDMI/DisplayPort audio signals can be extracted to digital/analog audio signals; stereo / composite/component audio can be embedded to digital audio signals



  • High-definition Video with Optimum Output
    • Superior video quality up to 4096 x 2160@60Hz (4:2:0) / 4096 x 2160@30Hz (4:4:4) (HDMI/DP)
    • EDID Expert™ - automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
    • HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant



  • Versatile, Streamlined Operation
    • Multiple control methods via front-panel pushbuttons, RS-232, OSD, and IR remote
    • Source preview - quickly identify and switch to the target content
    • Selectable display modes (Matrix, Mirror, or PiP) for different presentation demands
    • Auto switching – automatically detects and switches to a new source as soon as it is connected for time-saving and convenience
    • Supports stand-by mode for power saving and fast waking up



  • Extended Flexibility for USB Peripherals
    • USB ports enable keyboard/mouse or touch panel control over the connected computers
    • Control focus for keyboard/mouse and USB peripherals can be individually switched to a designated computer source

  • Multi-format AV Fast Switching – fast switching among 6 HDMI and 3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/Component/Composite) to 2 HDMI outputs and support of Coaxial, Toslink, Stereo audio outputs enable flexible interface/format conversion
  • USB Control Routing for PCs and Touch Panels – allow keyboard/mouse and touch panel controls over the remote computers, with the control focus for keyboard/mouse and USB peripherals can be individually switched to a designated computer source
  • Selectable Matrix, Mirror and PIP modes to meet the needs of various events or presentation styles
  • Source Preview – quickly identify and switch to the target content
Video Input
Interfaces 6 x HDMI Type A female (Black)
1 x DP Female (Black)
1 x HDB-15 Female (Blue)
1 x Component (3x RCA female, Blue/Green/Red)
1 x Composite (1x RCA female, Yellow)
Video Output
Interfaces 2 x HDMI Type A female (Black)
Max. Distance Up to 15m
Video
Max. Resolution HDMI/DP: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
VGA/Analog: Up to 1920x1200@60Hz
Compliance HDMI (3D, Deep Color, 4K)
HDMI/DP: HDCP 1.4 Compatible; Consumer Electronics Control (CEC)
Audio
Input Stereo Audio: 1 x mini stereo Jack female (Green)
Composite/Component Audio: 2 x RCA female (Red/White)
Output Optical Audio: 1 x Toslink (Black)
Coaxial Audio: 1 x RCA female (Orange)
Stereo Audio: 2 x RCA female (White / Red)
Connectors
Computers 2 x USB Type B Female (White)
Console Ports Keyboard/Mouse: 2 x USB Type A Female (White)
Device: 2 x USB Type A Female (White)
Power 1 x 3-prong AC Socket
Control
RS-232 1 x DB 9 female (Black)
IR 1 x Mini Stereo Jack Female (Black)
Switches
Power 1 x Pushbutton
1 x Rocker
Video Input Port Selection 6 x Pushbutton
Video Output Port Selection 2 x Pushbutton
Selection Mode: 1 x Pushbutton
Menu: 1 x Pushbutton
Up (Unlock): 1 x Pushbutton
Esc: 1 x Pushbutton
Audio: 1 x Pushbutton
Preview: 1 x Pushbutton
Down: 1 x Pushbutton
Enter: 1 x Pushbutton
LEDs
Video Source 1: HDMI/VGA: 2(Green)
Source 2: HDMI/DP: 2(Green)
Source 3: HDMI/AV/YPbPr: 2(Green)
USB Link Keyboard/Mouse: 2 (Amber)
Device: 2 (Amber)
EDID Settings EDID Mode: Default / Port 1 / Remix
Power
Maximum Input Power Rating 100-240 VAC; 50-60Hz; 1.0A
Power Consumption AC110V:7.3W:60BTU
AC220V:7.3W:60BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 2.36 kg ( 5.2 lb )
Dimensions (L x W x H) 43.72 x 16.36 x 4.40 cm
(17.21 x 6.44 x 1.73 in.)
Carton Lot 1 pc
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
